bladder accumulator

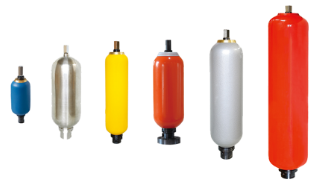

1.European standard bladder accumulator

Features

1. Structural form: Bottom-disassembly, top-disassembly structure.

2. Fixing method: Fastening clamps or supports.

3. Installation method: Vertical installation is preferred.

4. Working medium: Hydraulic oil, emulsion.

5. Design temperature: -10℃ to +70℃.

6. Encapsulation gas: Nitrogen.

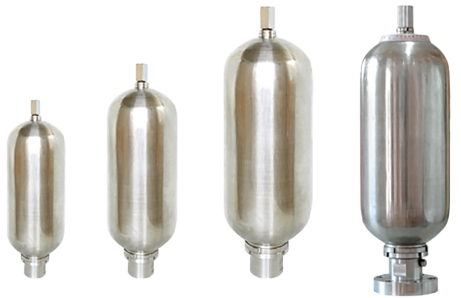

2.Stainless steel bladder accumulator

3.National Standard Bag Accumulator

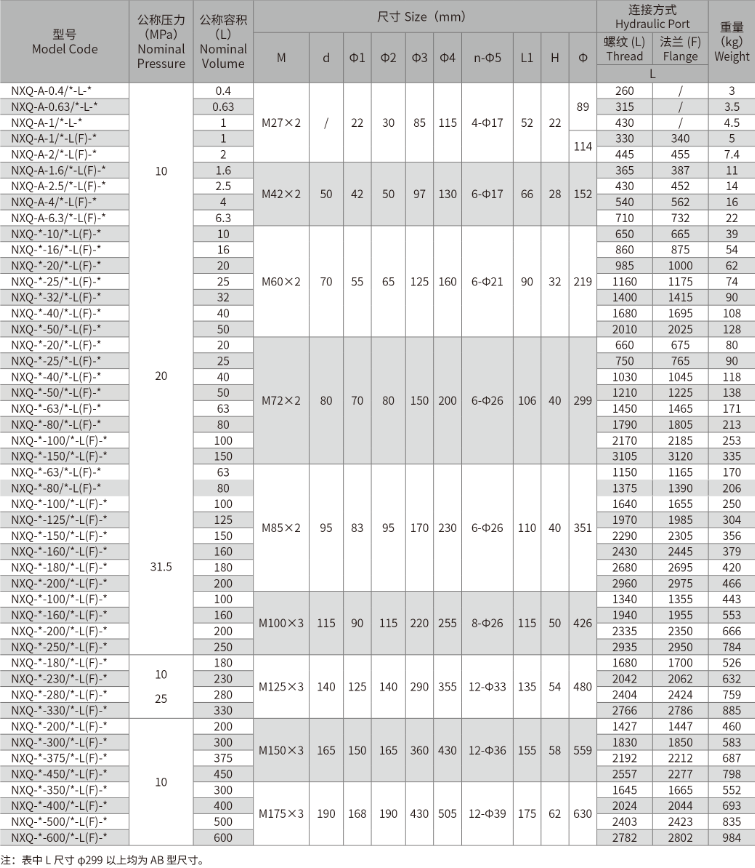

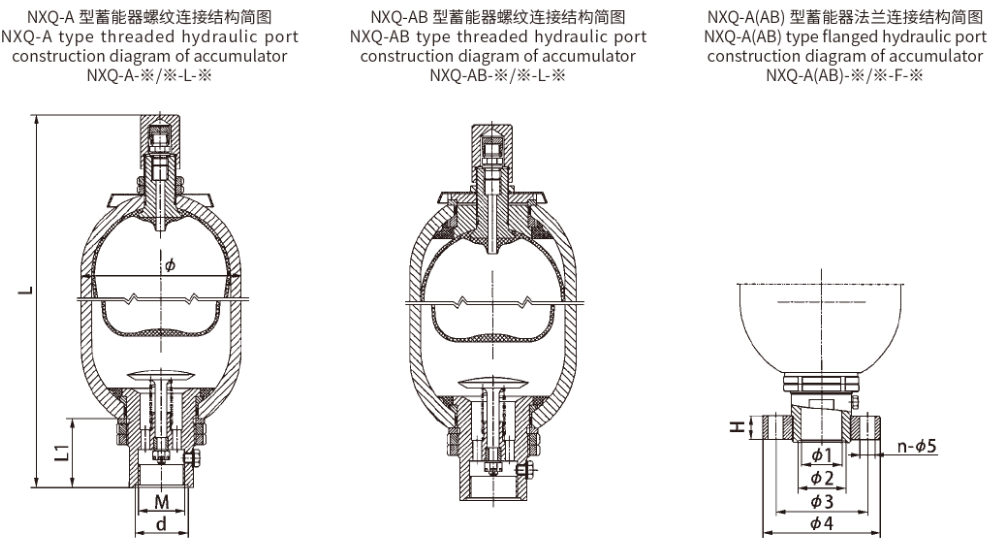

Internal structure and external dimensions

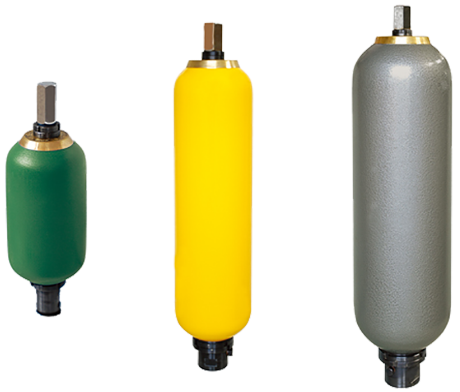

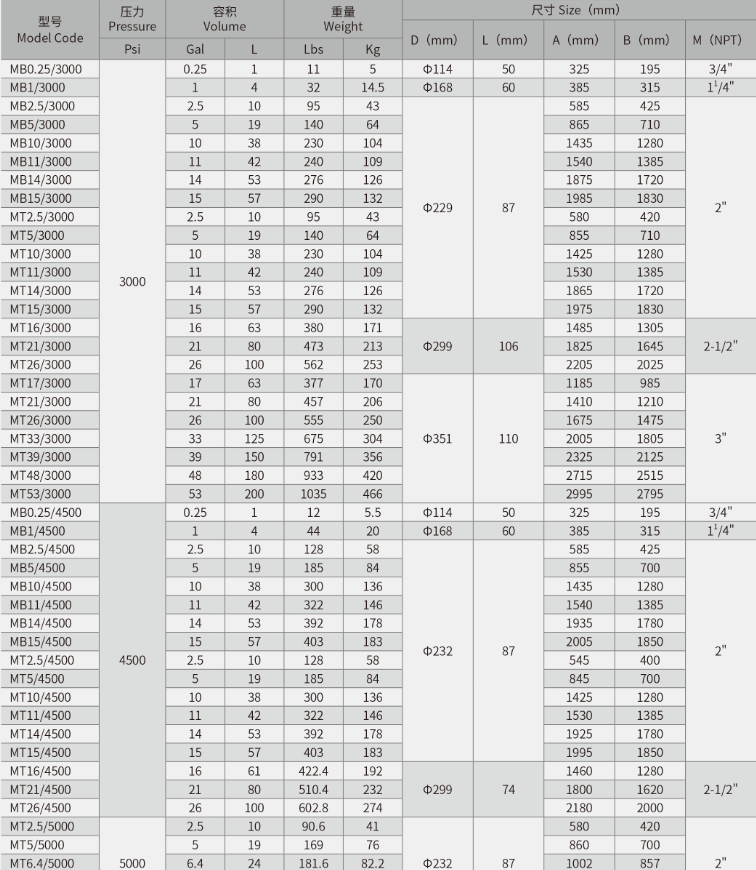

4.American Standard Capsule Accumulator

Features

1. Structural form: Bottom-disassembly, top-disassembly structure.

2. Fixing method: Fastening clamps or supports.

3. Installation method: Vertical installation is preferred.

4. Working medium: Hydraulic oil, emulsion.

5. Design temperature: -10℃ to +93℃.

6. Encapsulation gas: Nitrogen.

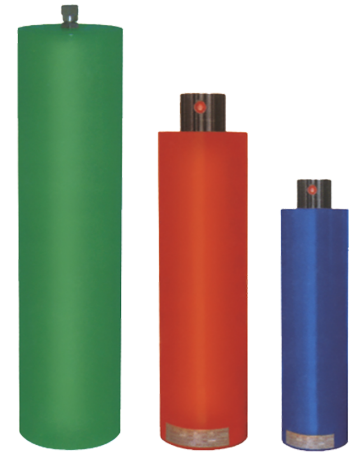

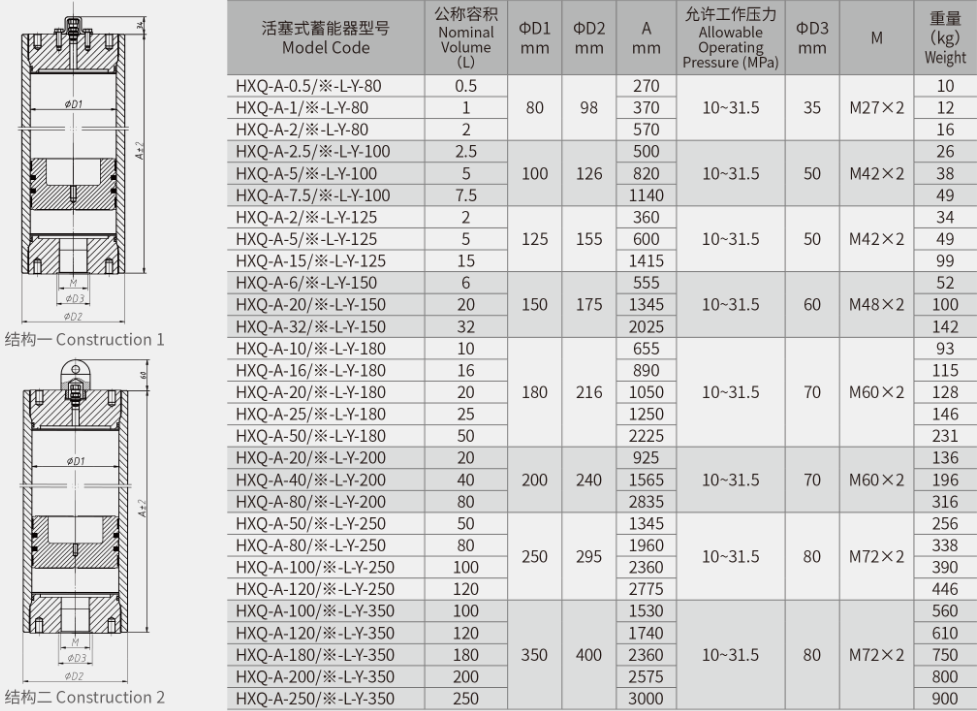

Piston accumulator

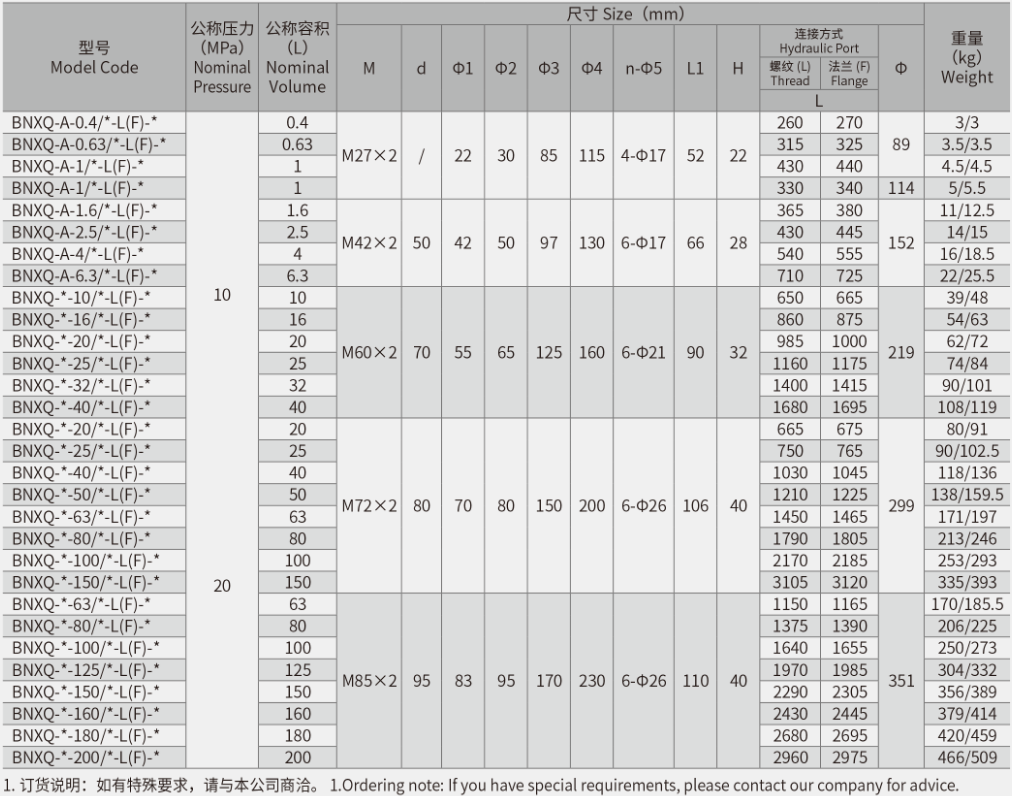

Internal structure and external dimensions

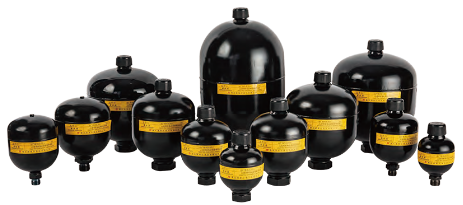

Threaded diaphragm accumulator

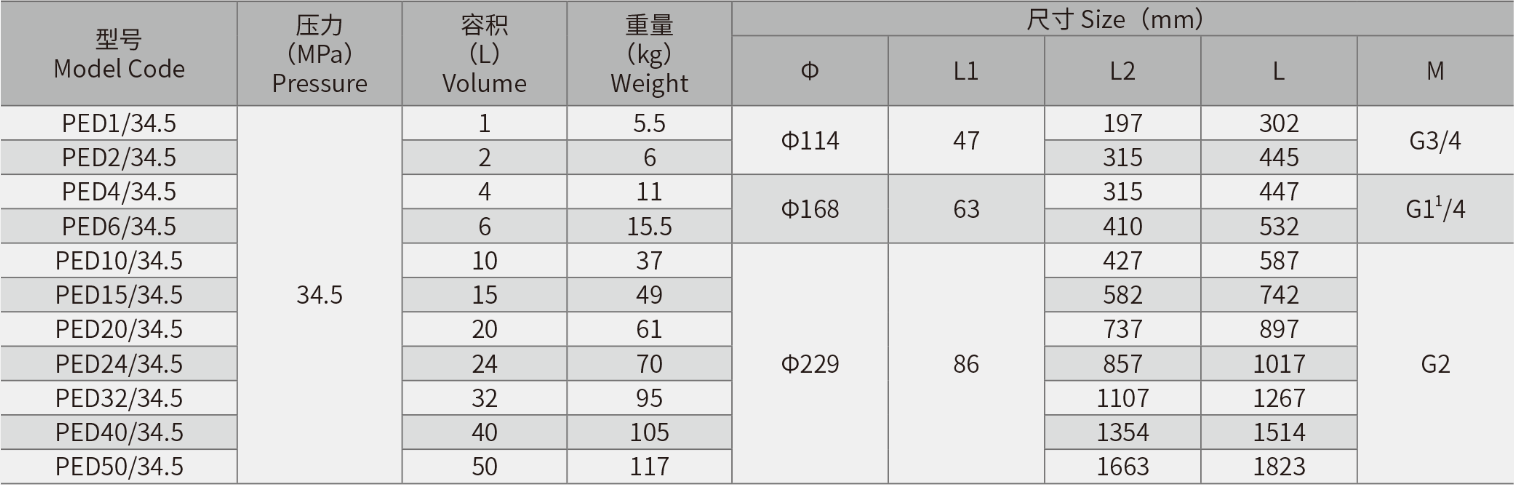

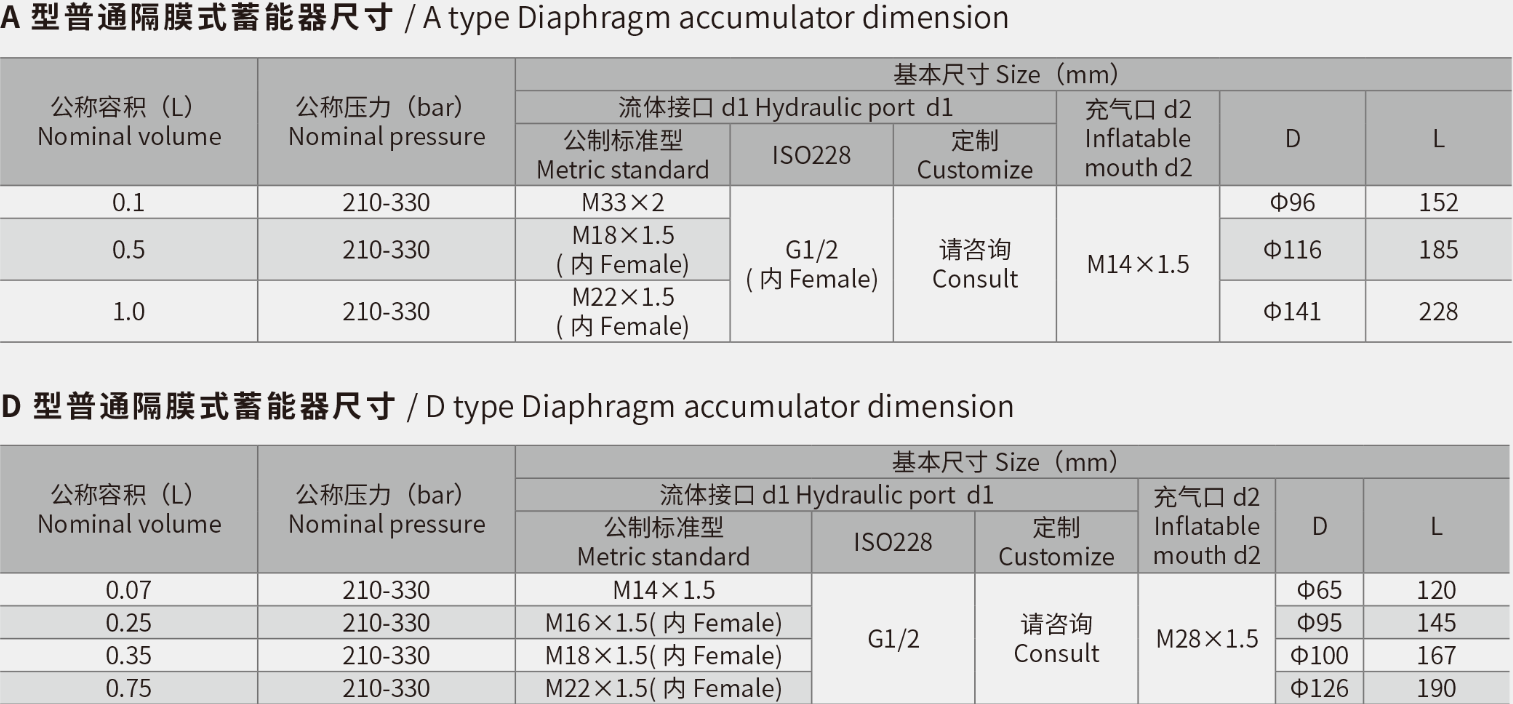

Model and size

Welded diaphragm accumulator



拖车挂钩制动主缸总成

产品型号： 3505010J-0C9000

产品描述： 拖车挂钩制动主缸总成

适用车型： 1-1.5T挂车

应用场景：

用途与特征：

应用于惯性制动系统，牵引车制动时，将牵引车的惯性冲击转换成液压能，使制动器产生正常制动。牵引车制动时，与牵引车相连的牵引环受到惯性冲击，经牵引减震器缓冲，推动制动主缸活塞产生液压，通过制动管路作用于制动器轮缸，使制动器产生正常制动。

应急制动拉索与牵引车相连，当挂车脱挂后，牵引车拉动应急制动拉索使杠杆在簧片作用下进入锁止状态，杠杆顶住主缸活塞，使制动器实现应急制动。主缸缸径φ25.4mm，主缸行程30mm。
